Lab Double Cone Blneder

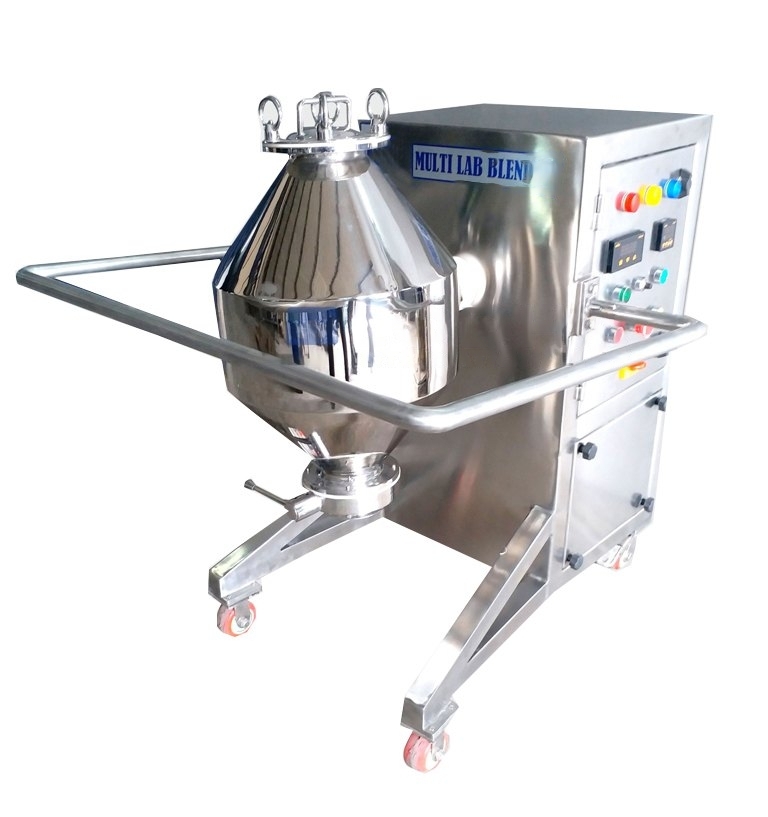

Lab Double Cone Blender

Double Cone Blender R&D Model (small powder mixer) uses for mixing dry powder and granules homogeneously. All contact parts made out of stainless steel of required grade by customer. Two third of the volume of the Cone Blender is filled to ensure proper mixing. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc. Interestingly, double cone machine is having cantilever type design which allows interchangeable pans. In this machine different capacity of cones can be interchange in same machine. Apart from this one can use different shape bowl like octagonal shape, V shape, Ribbon shape bowls in the machine. Pharmaceutical powder mixer available in 5 liters, 10 liters, 15 liters and 20 liters capacity for pilot batch mixing requirements.



Double Cone Blender R&D Model (small powder mixer) uses for mixing dry powder and granules homogeneously. All contact parts made out of stainless steel of required grade by customer. Two third of the volume of the Cone Blender is filled to ensure proper mixing. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc.

Interestingly, double cone machine is having cantilever type design which allows interchangeable pans. In this machine different capacity of cones can be interchange in same machine. Apart from this one can use different shape bowl like octagonal shape, V shape, Ribbon shape bowls in the machine. Pharmaceutical powder mixer available in 5 liters, 10 liters, 15 liters and 20 liters capacity for pilot batch mixing requirements.



Double Cone Blender R&D Model Video



Salient Features of Small Cone Blender

  • Compact model.
  • Interchangeable design hence different capacity cones can be attached on same machine.
  • The conical shape at both ends enables uniform mixing and easy discharge.
  • All contact parts are made out of Stainless Steel 316 quality material.
  • Maximum care has been taken to ensure safe operation of the unit.
  • Cantilever type design mounted on single shaft.
  • Suitable size of butterfly valve at one end of the cone provided for material discharge & hole with open able cover provided at other end of the cone for material charging & cleaning.
  • Cone will be mirror polished from the inside & outside & structure will be matt polished.
  • All moving parts covered with SS 304 covers.
  • Safety guards made from SS 304 pipes provided in front of the machine.
  • Panel fabricated from SS 304 material with facility of three phase indication, start – Stop – Inch Buttons, VFD control.
  • Worm reduction gear use for speed reduction.
  • All safety guards & covers made out of SS 304.

Technical Specification of Lab Scale Powder Mixer

Model

DCB – 5

Orientation

Cantilever type

Type of Design

Interchangeable

Gross Capacity

8 Liters approx.

Working Capacity

4 Liters approx.

Contact Parts

Stainless Steel 316 grade 2mm thick plate

Shafting

Stainless Steel

Bearing

Double Roller Bearing

Motor

0.5 H.P., 1440 RPM, 3 Phase, Non-Flame Proof

Electricals

440 volts, 3 Phase, 50 Hertz

Discharge Valve

Through Butterfly Valve

Gear Type

Reduction type gear, Ration 30:1

* Power voltage can be adjusted as per customer's domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
